Apex Storage X28 Gen5

The Apex Storage X28 Gen5 hosts 28 Gen 5 M.2 NVMe SSDs on one PCIe card for up to 448TB of storage at 104GB/s.
Holds 16 or 21 Gen4 M.2 of your choice
  • Host 28 x M.2 Gen 5 NVMe SSDs
  • Up to 448TB Per Card
  • 104GB/s Read/Write Speeds
Order Now
Apex Storage X28 Gen5 PCIe NVMe add-in card

Speed Performance

Performance may change based on SSD capacity/speed, hardware platform,  operating system, and other system variables
Read Bandwidth
104Gbps w/ Dual Upstream
Write Bandwidth
104Gbps w/ Dual Upstream
Raw Capacity**
448TB
Order Now

Specification

Raw Capacity**
448TB w/ 16TB M.2 NVMe SSD
Drive Interface
M.2 PCIe Gen 5 (Support Gen 3,4, & 5)
Read Bandwidth
104Gbps w/ Dual Upstream
Read/WriteIOPS
80 Million +
Avg Read Access Latency
52µs
Avg Write Access Latency
49µs
Host Protocol
PCIe Gen 5 16x (Supports PCIe 1x,4x,8x slots with open end)
Write Bandwidth
104Gbps w/ Dual Upstream
M.2 Protocol
Gen 3,4 & 5 NVMe
Warranty
5 Years
Weight
4.85lbs
Power
400 Watts PCIe/EPS 8 Pin
Air Flow
Dual Internal Fans
Humidity
5% to 95% (non-condensing)
Supported OS
Windows, Windows Server, Linux, macOS
Apex Storage X28 Gen5 – front-right view

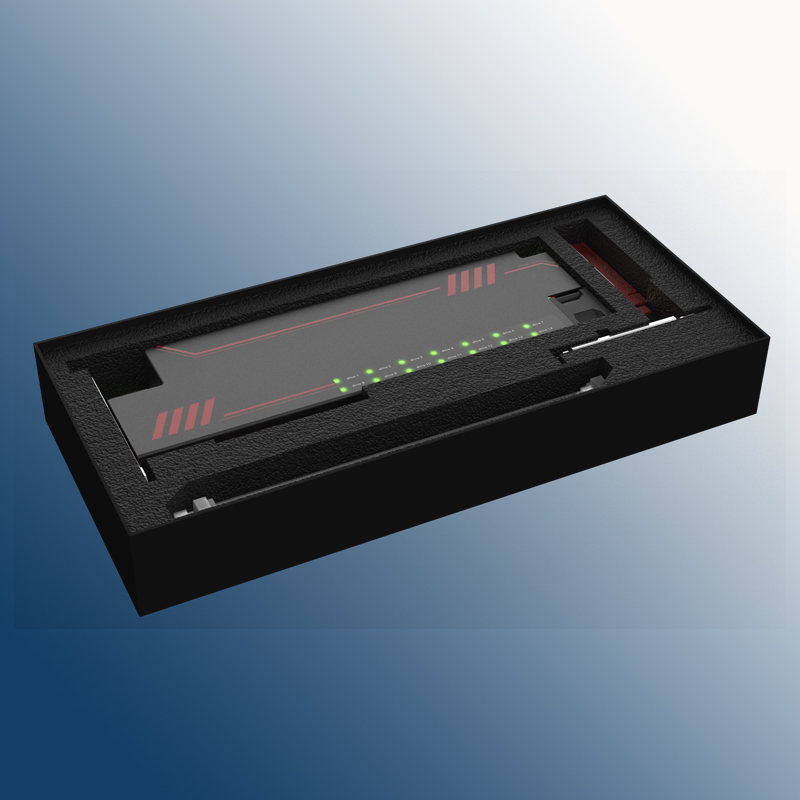

Apex Storage X28 Gen5 – in OEM packaging

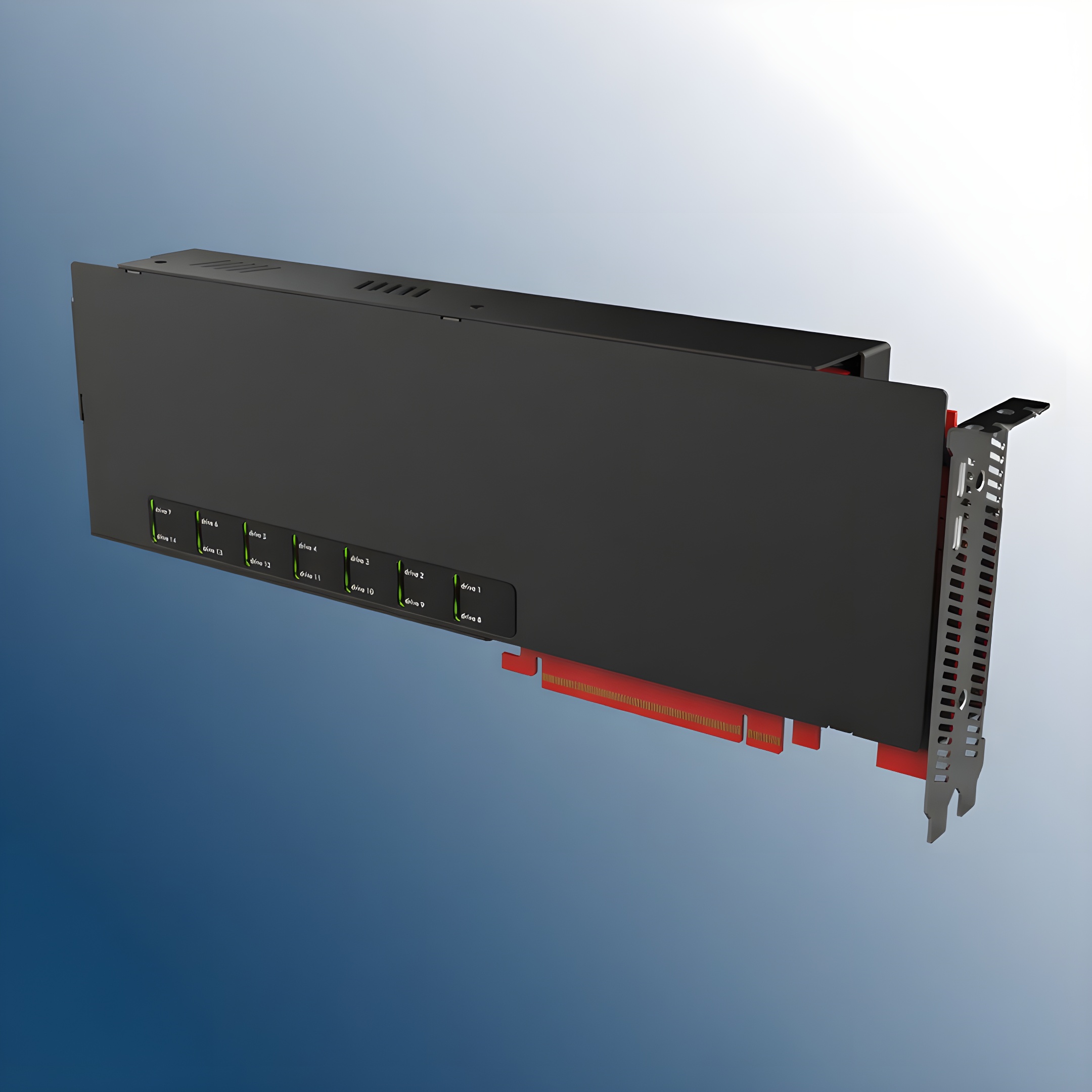

Apex Storage X28 Gen5 – rear of the card

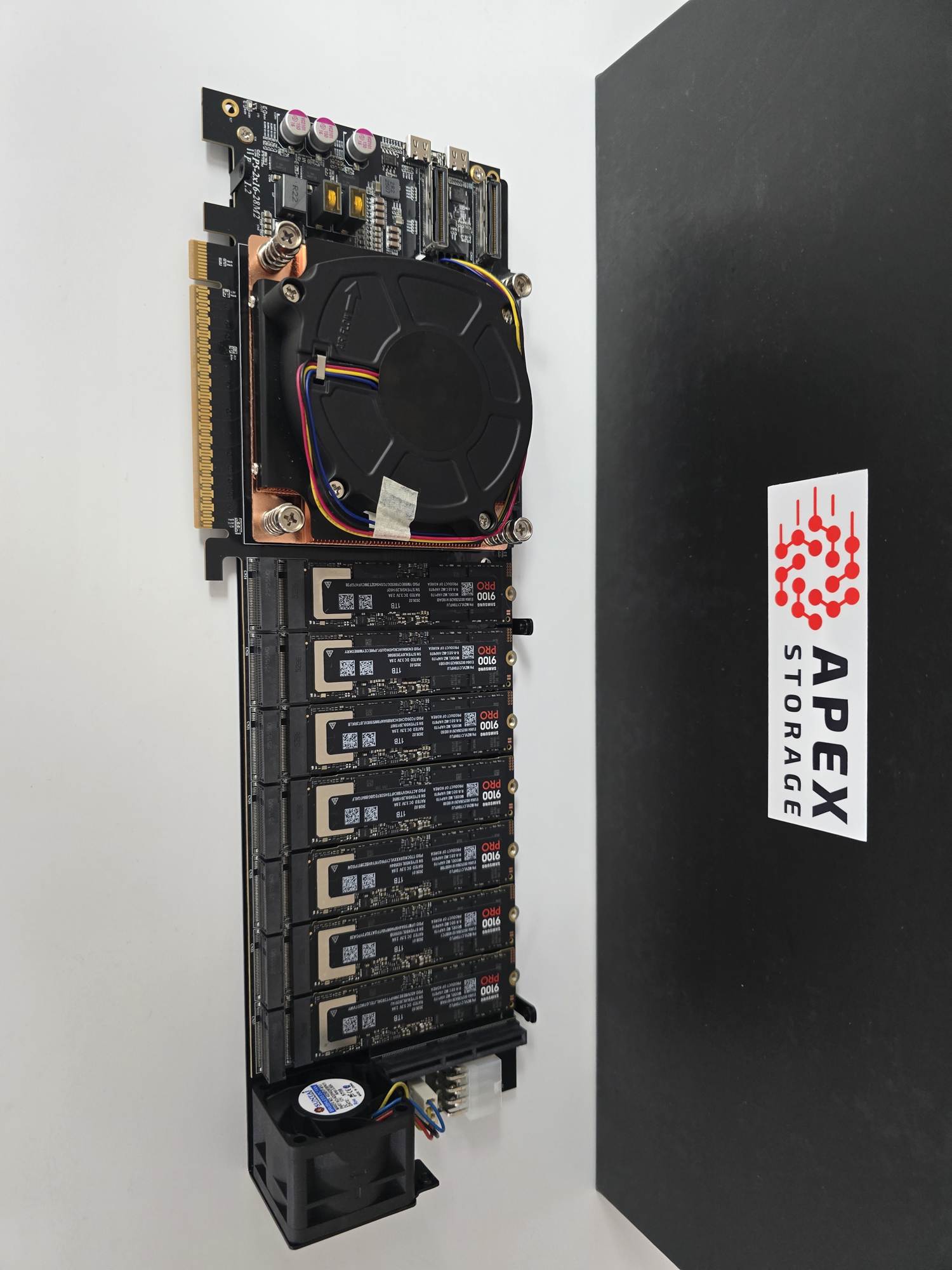

Apex Storage X28 Gen5 – base card populated with M.2 drives

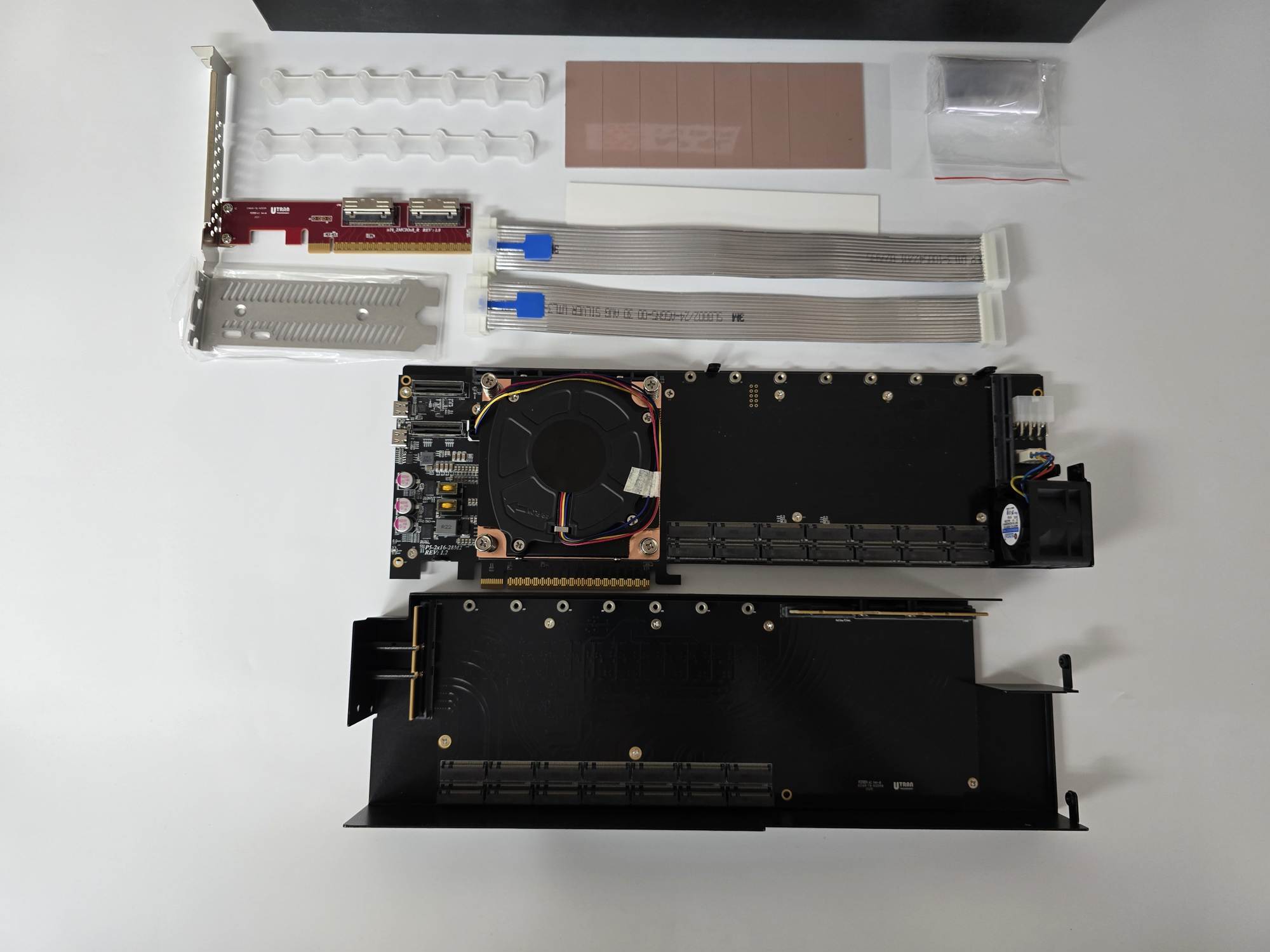

Apex Storage X28 Gen5 – component breakdown

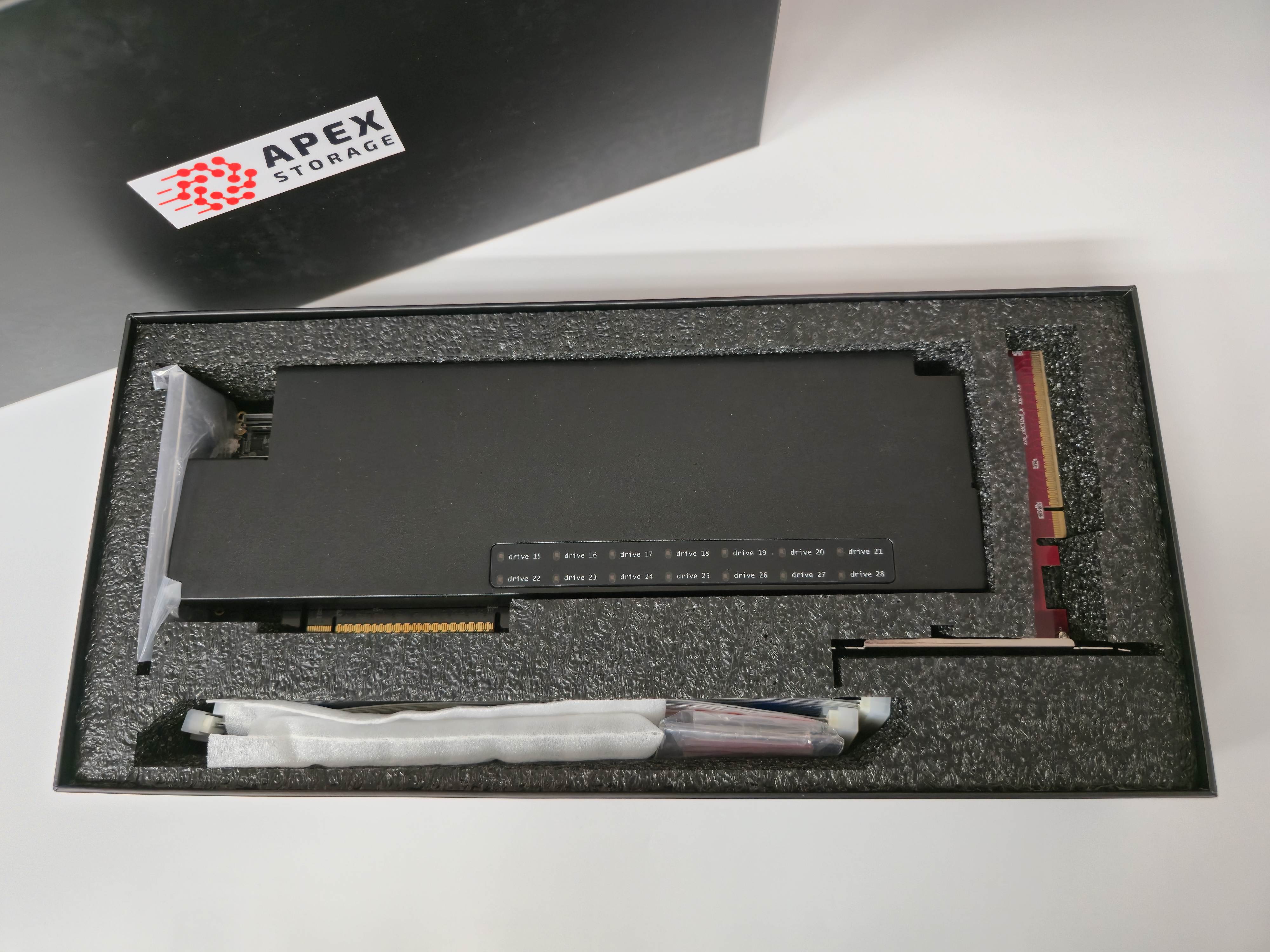

Apex Storage X28 Gen5 – retail packaging
