Apex Storage X16 Gen4 Now!

With the Apex Storage X16 Gen4 you have the highest performance and highest density NVMe M.2 array on the market.
Holds 16 or 21 Gen4 M.2 of your choice
  • Host 16 Gen4 NVMe SSDs
  • Up too 128TB NVMe Storage Per Card
  • 31GBps Read/Write Speeds
Order Now

MACHINE LEARNING & HYPER CONVERGED INFRASTRUCTURE

Enabling faster intelligence and access to critical data, the x16 meets the growing demands of Machine Learning applications. Our x16 Gen4 delivers extreme performance and ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels!

EXTENDED SSD PRODUCT LIFECYCLE

Create the industries largest high performance NVMe arrays on any Windows or Linux operating systems. With support for AMD, Intel & ARM based systems. Specialized software is not required with our plug and play setup. Take full advantage of the industry’s fastest and most storage dense storage solution. With 128TB** or more of NVME storage capacity per card, you'll have the storage capacity you need. The x16 Gen4 is fully backwards compatible with PCIe Gen 4 & 3 platforms and NVME Devices, enabling customers to take full advantage of Gen 5 Platform speeds while extending their Gen 3/4 storage media lifecycle.

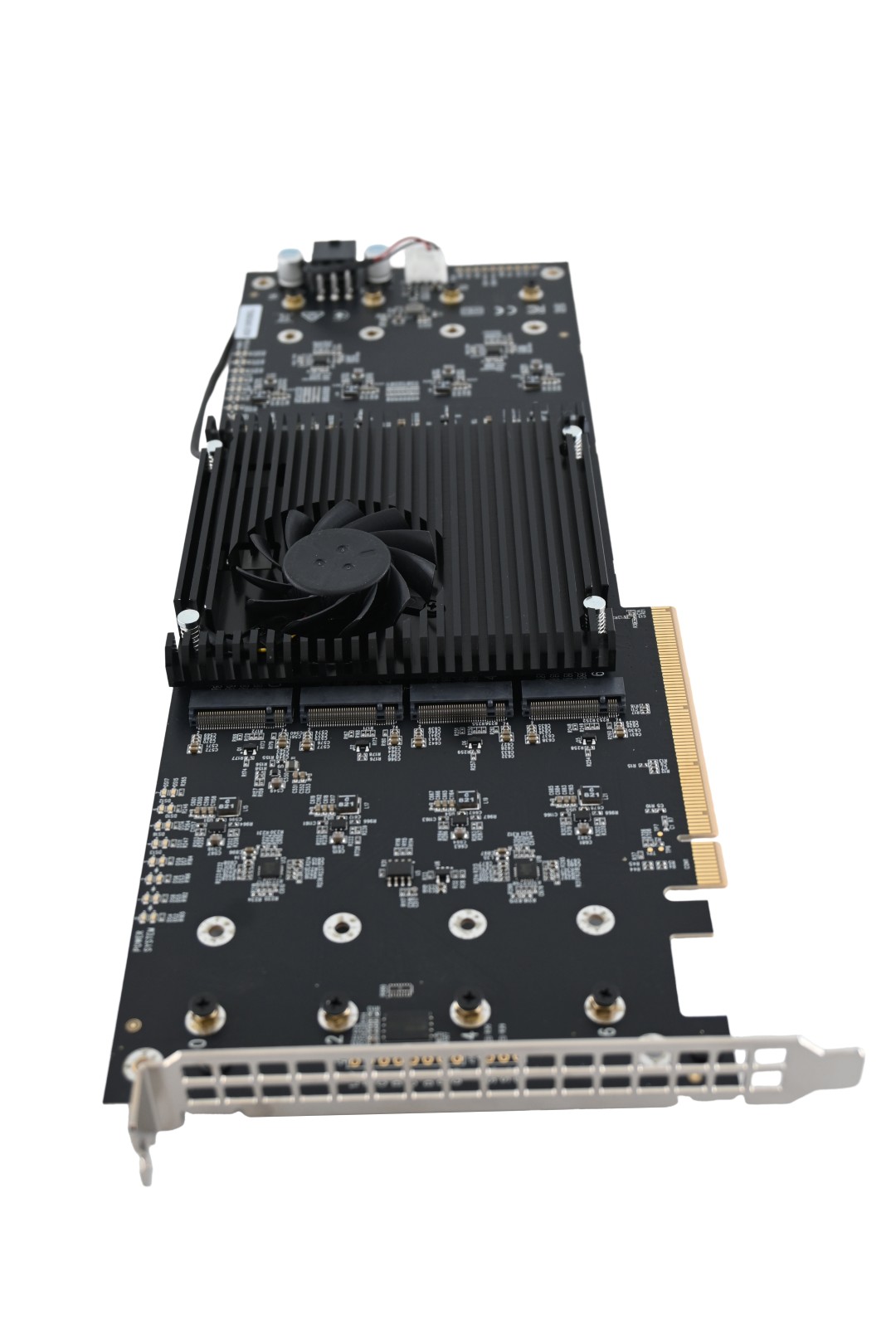

AI and Machine Learning Accelerator Card product diagram

Speed Performance

Performance may change based on SSD capacity/speed, hardware platform,  operating system, and other system variables
Read Bandwidth
30.5 GBps
Write Bandwidth
28.5GBps
Raw Capacity**
128TB
Order Now

Specification

Raw Capacity**
128TB w/ 8TB M.2 NVME SSD’s (256TB w/ future 16TB M.2 SSD’s)
Drive Interface
M.2 PCIe Gen 4
Read Bandwidth
30.5 GBps
Read/WriteIOPS
48.3 Million IOPS Read/ 21.6 Million IOPS Write
Avg Read Access Latency
79µs
Avg Write Access Latency
52µs
Host Protocol
PCIe Gen 4 16x (Supports PCIe 1x,4x,8x slots with open end)
Write Bandwidth
28.5GBps
M.2 Protocol
Gen4 NVME v2.0/v1.4c
Warranty
10 Years
Weight
19 oz
Power
Active: ~95 Watt Typical 2 x PCIe 6 pin 12v
Air Flow
Min 7.86 CFM
Humidity
5% to 95% (non-condensing)
Supported OS
Windows, Windows Server, Linux
